大致情况是,用 IntelliJ IDEA 开发 XiangShan,手欠升级了 2025.1.3,然后发现代码高亮和自动补全都炸了,头铁研究了一下,可能是如下的原因:

  1. 2025会根据项目构建文件自动选择构建系统
    1. 存在 build.sbt:使用 sbt
    2. 存在 build.mill:使用 bsp 支持mill
  2. 然而 XiangShan 的 sbt 配置在 4 年前创建以后就再也没有维护过
  3. 并且使用的是旧版的 build.sc,因此无法识别上面的 1.2.
  4. mill -i mill.idea.GenIdea/idea 生成的 xml 文件似乎无法正常识别
  5. 综上,2025 会非常执着地导入一个未维护的 sbt 构建脚本,然后失败,然后代码高亮💥

Boom

workaround:手动使用 bsp

https://www.jetbrains.com/help/idea/bsp-support.html

比较坑的是,idea 打开一个全新的项目(没有 .idea 文件夹)时会自动创建一些元数据,导致它又回到了试图导入 sbt 构建脚本的状态,所以必须在 idea 没有污染掉项目文件夹的情况下导入项目:

  1. 进入XiangShan,rm -rf .idea && make bsp
  2. 若是本地项目,选择打开,选择 XiangShan 文件夹,顺利的话它会检测到已经存在的 bsp 配置和 .sbt 脚本,进而询问用户使用哪一个,选择 BSP,确认即可

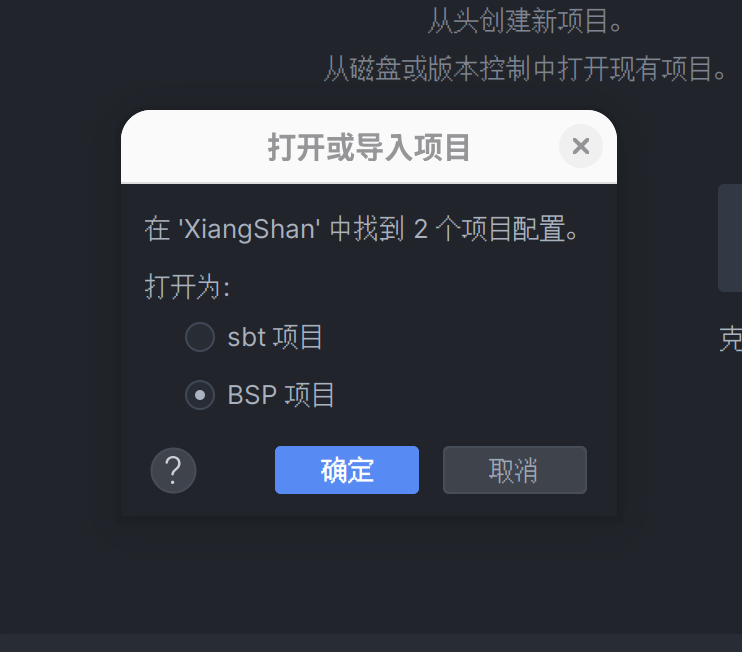

    Prompt bsp or sbt
  3. 若是远程项目,它不会询问 2.1.,然后又回去试图导入 sbt,大寄特寄,有两种解决思路:
    1. 在本地导入好后,将 .bsp 和 .idea 文件夹拷到服务器上,直接打开即可
    2. 先在远程打开一个临时文件夹(不要用 XiangShan),进入编辑器后左上角新建 -> 现有源中的项目,选择 XiangShan 文件夹,选择 BSP

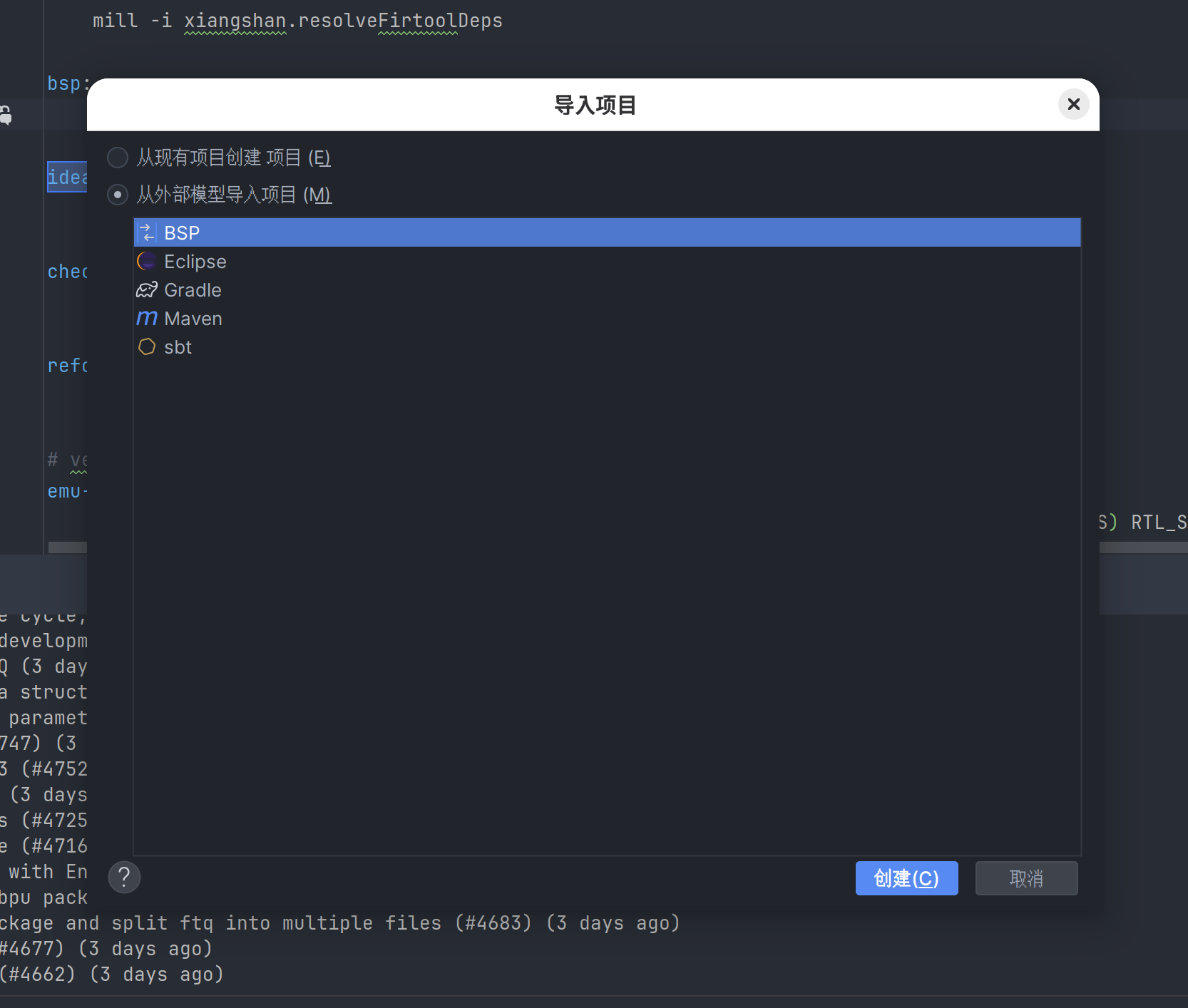

      Prompt selection

下一个坑是 make bsp 不会将 build/ 标记为已排除的目录,导致每次编译都会重新跑巨量的索引,占满 CPU,服务器使用 nfs 情况更严峻,搞不好直接远程连接就断了

解决:手动右键 build/,将目录标记为->已排除

背景

RISC-V 与厂商扩展

RISC-V 是一种模块化的指令集架构。在基础指令集之上,既有官方的标准扩展,也允许硬件厂商定义自己的扩展。

https://en.wikipedia.org/wiki/RISC-V#ISA_base_and_extensions

以 LicheePi 4A 搭载的 th1520 SoC 为例,其使用的处理器核心为玄铁 C910,支持的指令集为 rv64gc_zfh_xtheadba_xtheadbb_xtheadbs_xtheadcmo_xtheadcondmov_xtheadfmemidx_xtheadfmv_xtheadint_xtheadmac_xtheadmemidx_xtheadmempair_xtheadsync

其中 gimafd_zicsr_zifencei 的缩写,rv64i 指代 RISC-V 64-bit 整数基础指令集,其余单字母和 z 开头的为标准扩展,x 开头的为厂商扩展,thead 是阿里平头哥的前缀:

  • 标准扩展
    • i: base interger isa
    • m: multiply / division
    • a: atomic
    • f: single-precision floating-point
    • d: double-precision floating-point
    • zicsr: control status register
    • zifencei: i-cache flush (for i-d consistency)
    • c: compressed (16 bit) instruction
    • zfh: half-precision floating-point
  • 平头哥厂商扩展
    • xtheadba: address calculations
    • xtheadbb: basic bit-manipulation
    • xtheadbs: single-bit instructions
    • xtheadcmo: cache management operations
    • xtheadcondmov: conditional moves
    • xtheadfmemidx: floating-point memory operations
    • xtheadfmv: double floating-point high-bit data transmission instructions
    • xtheadint: acceleration interruption instructions
    • xtheadmac: multiply-accumulate
    • xtheadmemidx: GPR memory operations
    • xtheadmempair: two-GP-register memory operations
    • xtheadsync: multi-processor synchronization

https://wiki.sipeed.com/hardware/zh/lichee/th1520/lp4a.html
https://www.xrvm.cn/product/xuantie/C910

标准的工具链主线已经逐渐加入了对这些扩展的支持,我们可以通过 gcc -march 参数来启用这些扩展,这将有助于提高程序在支持这些扩展的硬件上运行时的性能。

https://gcc.gnu.org/gcc-13/changes.html#riscv
https://gcc.gnu.org/onlinedocs/gcc/RISC-V-Options.html

用于 LicheePi 4A 的 NixOS

前人已经成功在 x86_64 上通过交叉编译构建出了用于 LicheePi 4A 的 NixOS 系统镜像,尝试在此基础上启用厂商扩展的支持。

https://thiscute.world/posts/how-nixos-start-on-licheepi4a/
https://github.com/ryan4yin/nixos-licheepi4a

虽然本文的过程是基于 LicheePi 4A 的,但逻辑上是可以用于任意 RISC-V 厂商扩展的。

问题

好消息是,NixOS 在对 ARM 的支持过程中已经提供了较为完善的交叉编译和 gcc march 参数的支持,我们可以用类似下面的方式指定交叉编译的目标架构和 gcc 的参数:

1
2
3
4
5
nixpkgs.crossSystem = {
config = "riscv64-unknown-linux-gnu";
gcc.arch = "rv64gc_zfh_xtheadba_...";
gcc.abi = "lp64d";
};

https://gcc.gnu.org/onlinedocs/gcc/RISC-V-Options.html

坏消息是,仅仅启用 gcc 的支持是不够的。NixOS 的交叉编译过程需要使用 QEMU 来模拟目标架构的运行环境,从而运行编译出的程序,来进行测试、生成初始配置等工作。

好消息是,QEMU 对厂商自定义扩展的支持也日趋完善,我们可以通过 -cpu 参数或 QEMU_CPU 环境变量指定指令集:

1
qemu-riscv64 -cpu rv64gc,zfh=true,xtheadba=true,... <binary>
1
QEMU_CPU="rv64gc,zfh=true,xtheadba=true,..." qemu-riscv64 <binary>

https://wiki.qemu.org/ChangeLog/8.0#RISC-V

坏消息是,NixOS 的交叉编译过程不仅没有提供直接的方式来指定 QEMU 的 CPU 参数,而且在其编译过程中使用 meson 和 binfmt 等各种或隐式或显示的方式来调用 QEMU。没有统一的调用方式,也就难以找到统一的传参方式。

例如,构建 fontconfig 时,NixOS 通过手动调用 QEMU,运行 fontconfig 来生成缓存:

https://github.com/NixOS/nixpkgs/blob/7d66df760c0d524479a6f946e34963fb055211e0/pkgs/development/libraries/fontconfig/make-fonts-cache.nix
1
2
3
4
5
6
7
8
runCommand "fc-cache" {
# ...
}
''
# ...
${stdenv.hostPlatform.emulator buildPackages} ${lib.getExe' fontconfig "fc-cache"} -sv
# ...
''

再比如,构建 gdk-pixbuf 时,NixOS 在 postInstall 钩子脚本中手动调用 QEMU:

https://github.com/NixOS/nixpkgs/blob/291addf97dbb30867590494b0dab8ffbb39abd20/pkgs/development/libraries/gdk-pixbuf/default.nix
1
2
3
4
5
6
7
8
postInstall =
''
# ...
''
+ lib.optionalString withIntrospection ''
# We need to install 'loaders.cache' in lib/gdk-pixbuf-2.0/2.10.0/
${stdenv.hostPlatform.emulator buildPackages} $dev/bin/gdk-pixbuf-query-loaders --update-cache
'';

还有些直接使用 meson 构建系统的交叉编译配置文件 cross-file.confexe_wrapper 参数来让 meson 自动调用 QEMU

1
2
3
4
5
6
7
nativeBuildInputs =
[
# ...
]
++ lib.optionals (!stdenv.buildPlatform.canExecute stdenv.hostPlatform) [
mesonEmulatorHook
];
https://github.com/NixOS/nixpkgs/blob/fba6f87e2635373ac77608841d9a239ea35a410d/pkgs/top-level/all-packages.nix#L2265-L2284
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
mesonEmulatorHook =
makeSetupHook
{
name = "mesonEmulatorHook";
substitutions = {
crossFile = writeText "cross-file.conf" ''
[binaries]
exe_wrapper = '${lib.escape [ "'" "\\" ] (stdenv.targetPlatform.emulator pkgs)}'
'';
};
}
(
if (!stdenv.hostPlatform.canExecute stdenv.targetPlatform) then
../by-name/me/meson/emulator-hook.sh
else
throw "mesonEmulatorHook may only be added to nativeBuildInputs when the target binaries can't be executed; however you are attempting to use it in a situation where ${stdenv.hostPlatform.config} can execute ${stdenv.targetPlatform.config}. Consider only adding mesonEmulatorHook according to a conditional based canExecute in your package expression."
);

最后还有一些特例,在构建 gobjetct-introspection 时,NixOS 通过一个自定义的 wrapper 脚本来调用 QEMU:

https://github.com/NixOS/nixpkgs/blob/fa42801050c1d56f70c783cf5f43fd79f3ab542a/pkgs/development/libraries/gobject-introspection/wrapper.nix
1
2
3
4
5
6
7
buildCommand = ''
# ...
export emulator=${lib.escapeShellArg (stdenv.targetPlatform.emulator buildPackages)}
export emulatorwrapper="$dev/bin/g-ir-scanner-qemuwrapper"
# ...
substituteAll "${./wrappers/g-ir-scanner-qemuwrapper.sh}" "$dev/bin/g-ir-scanner-qemuwrapper"
''
https://github.com/NixOS/nixpkgs/blob/fa42801050c1d56f70c783cf5f43fd79f3ab542a/pkgs/development/libraries/gobject-introspection/wrappers/g-ir-scanner-qemuwrapper.sh
1
2
3
exec @emulator@ ${GIR_EXTRA_OPTIONS:-} \
${GIR_EXTRA_LIBS_PATH:+-E LD_LIBRARY_PATH="${GIR_EXTRA_LIBS_PATH}"} \
"$@"

更糟糕的是,RISC-V 的做法是在指令编码空间预留出给厂商自定义扩展的空间,厂商并不需要保证其自定义扩展的编码不与其它非标准扩展冲突。因此,在拿到一个裸二进制数据时,QEMU 完全没有办法仅根据其编码来判断其属于哪一个厂家的哪一个扩展。这就要求必须人为向 QEMU 传入正确的 CPU 参数,否则就会出现 illegal instruction 异常,甚至模拟出错误的行为。

尝试解决

nix 灵活的 overlay 机制给了我们在不修改 nixpkgs 绝大部分内容的情况下正确传参的机会,我们可以想办法在所有调用 QEMU 的地方加入 -cpu 参数,或者在调用前设置 QEMU_CPU 环境变量。

不过,鉴于本人使用 nix 的经验也就半年,以下方案可能不是最优的,仅供参考。

mesonEmulatorHook

复用 mesonEmulatorHook 来通过 cross-file.conf 向 meson 传参的包很多,只要能解决它就能解决大部分问题。

注意到,cross-file.confexe_wrapper 参数可以是一个 list,我们可以将其从一个独立的 $emulator 字符串替换为一个类似 [$emulator, '-cpu', $qemu-cpu] 的列表,即可实现向 QEMU 传参。

overlay 实现如下:

overlay.nix
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
{ qemu-cpu, ... }:

self: super: {
# override original `nixpkgs/pkgs/top-level/all-packages.nix`.mesonEmulatorHook
# to add t-head vendor extensions to QEMU arguments.
mesonEmulatorHook =
super.makeSetupHook
{
name = "mesonEmulatorHook";
substitutions = {
crossFile = super.writeText "cross-file.conf" ''
[binaries]
exe_wrapper = ['${super.lib.escape [ "'" "\\" ] (super.stdenv.targetPlatform.emulator super.buildPackages)}', '-cpu', '${qemu-cpu}']
'';
};
}
(
if (super.stdenv.buildPlatform != super.stdenv.targetPlatform) then
./emulator-hook.sh
else
throw "mesonEmulatorHook may only be added to nativeBuildInputs when the target binaries can't be executed; however you are attempting to use it in a situation where ${super.stdenv.hostPlatform.config} can execute ${super.stdenv.targetPlatform.config}. Consider only adding mesonEmulatorHook according to a conditional based canExecute in your package expression."
);
}

对症下药

剩下的大多都是在构建脚本中手动调用 QEMU 的情况,如前述 fontconfig 的例子,我们可以直接 override 掉其构建脚本:

make-fonts-cache.nix
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
{
buildPackages,
fontconfig,
lib,
runCommand,
stdenv,
qemu-cpu, # added
}:
# ...
runCommand "fc-cache"
{
# ...
}
''
# ...
export QEMU_CPU=${qemu-cpu} # added
${stdenv.hostPlatform.emulator buildPackages} ${lib.getExe' fontconfig "fc-cache"} -sv
# ...
''

进而创建 overlay 来使用新的构建脚本

overlay.nix
1
2
3
4
5
6
7
8
9
10
11
12
{ qemu-cpu, ... }:

self: super: {
makeFontsCache =
if (super.stdenv.buildPlatform != super.stdenv.targetPlatform) then
super.callPackage ./make-fonts-cache.nix {
inherit qemu-cpu;
}
else
super.makeFontsCache
;
}

而对于一些在 postInstall 等钩子中调用 QEMU 的包,要修改就更加简单,直接创建 overlay 来在原来的钩子脚本前后添加 export QEMU_CPU 即可:

overlay.nix
1
2
3
4
5
6
7
8
9
10
11
12
13
14
{ qemu-cpu, ... }:

self: super: {
gdk-pixbuf =
if (super.stdenv.buildPlatform != super.stdenv.targetPlatform) then
super.gdk-pixbuf.overrideAttrs (old: {
postInstall = ''
export QEMU_CPU=${qemu-cpu}
'' + old.postInstall;
})
else
super.gdk-pixbuf
;
}

gobjetct-introspection

针对这个特例,我们需要修改 wrapper 脚本来添加一个 emulatorargs 参数,直接向 QEMU 传参:

g-ir-scanner-qemuwrapper.sh
1
2
3
exec @emulator@ @emulatorargs@ ${GIR_EXTRA_OPTIONS:-} \
${GIR_EXTRA_LIBS_PATH:+-E LD_LIBRARY_PATH="${GIR_EXTRA_LIBS_PATH}"} \
"$@"

然后在 overlay 中覆盖原始的 buildCommand 来使用新的 wrapper 脚本,并向脚本传入 emulatorargs 参数:

overlay.nix
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
{ qemu-cpu, ... }:

self: super: {
gobject-introspection =
if (super.stdenv.buildPlatform != super.stdenv.targetPlatform) then
super.gobject-introspection.overrideAttrs (old: {
buildCommand = old.buildCommand + ''
(
export emulator=${super.lib.escapeShellArg (super.stdenv.targetPlatform.emulator super.buildPackages)}
export emulatorargs="-cpu ${qemu-cpu}"
substituteAll "${./g-ir-scanner-qemuwrapper.sh}" "$dev/bin/g-ir-scanner-qemuwrapper"
chmod +x "$dev/bin/g-ir-scanner-qemuwrapper"
)
'';
})
else
super.gobject-introspection
;
}

写到这里突然反应过来了,其实 emulator 是个任意字符串,完全可以不使用额外的 emulatorargs 参数,也就不需要修改 wrapper 脚本,直接在 overlay 中覆盖 buildCommand 即可:

overlay.nix
1
2
3
# ...
export emulator="${super.lib.escapeShellArg (super.stdenv.targetPlatform.emulator super.buildPackages)} -cpu ${qemu-cpu}"
# ...

结果

经过这些修改,可以成功编译出启用了厂商扩展的 NixOS 镜像,刷入板卡后运行 gcc -v 可以看到编译器的配置中包含了 xthead 厂商扩展:

1
2
3
4
5
6
7
8
Using built-in specs.
COLLECT_GCC=/nix/store/8algs7jgq516m2v1di5v15l9n1d7c288-gcc-riscv64-unknown-linux-gnu-13.2.0/bin/gcc
COLLECT_LTO_WRAPPER=/nix/store/8algs7jgq516m2v1di5v15l9n1d7c288-gcc-riscv64-unknown-linux-gnu-13.2.0/libexec/gcc/riscv64-unknown-linux-gnu/13.2.0/lto-wrapper
Target: riscv64-unknown-linux-gnu
Configured with: ../gcc-13.2.0/configure --prefix=/nix/store/eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee-gcc-riscv64-unknown-linux-gnu-13.2.0 --with-gmp-include=/nix/store/eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee-gmp-with-cxx-riscv64-unknown-linux-gnu-6.3.0-dev/include --with-gmp-lib=/nix/store/eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee-gmp-with-cxx-riscv64-unknown-linux-gnu-6.3.0/lib --with-mpfr-include=/nix/store/eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee-mpfr-riscv64-unknown-linux-gnu-4.2.1-dev/include --with-mpfr-lib=/nix/store/eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee-mpfr-riscv64-unknown-linux-gnu-4.2.1/lib --with-mpc=/nix/store/eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee-libmpc-riscv64-unknown-linux-gnu-1.3.1 --with-native-system-header-dir=/nix/store/eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee-glibc-riscv64-unknown-linux-gnu-2.39-52-dev/include --with-build-sysroot=/ --with-gxx-include-dir=/nix/store/eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee-gcc-riscv64-unknown-linux-gnu-13.2.0/include/c++/13.2.0/ --program-prefix= --enable-lto --disable-libstdcxx-pch --without-included-gettext --with-system-zlib --enable-static --enable-languages=c,c++ --disable-multilib --disable-plugin --disable-libcc1 --with-isl=/nix/store/eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee-isl-riscv64-unknown-linux-gnu-0.20 --with-arch=rv64gc_zfh_xtheadba_xtheadbb_xtheadbs_xtheadcmo_xtheadfmemidx_xtheadfmv_xtheadmac_xtheadmemidx_xtheadsync --with-abi=lp64d --disable-bootstrap --build=x86_64-unknown-linux-gnu --host=riscv64-unknown-linux-gnu --target=riscv64-unknown-linux-gnu
Thread model: posix
Supported LTO compression algorithms: zlib
gcc version 13.2.0 (GCC)

Configured with: 一行中:

1
--with-arch=rv64gc_zfh_xtheadba_xtheadbb_xtheadbs_xtheadcmo_xtheadfmemidx_xtheadfmv_xtheadmac_xtheadmemidx_xtheadsync --with-abi=lp64d

简单跑一个 CorkMark 测试:

with xthead*
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
2K performance run parameters for coremark.
CoreMark Size : 666
Total ticks : 16599
Total time (secs): 16.599000
Iterations/Sec : 3614.675583
Iterations : 60000
Compiler version : GCC14.2.1 20250322
Compiler flags : -O2 -march=rv64gc_zfh_xtheadba_xtheadbb_xtheadbs_xtheadcmo_xtheadcondmov_xtheadfmemidx_xtheadfmv_xtheadint_xtheadmac_xtheadmemidx_xtheadmempair_xtheadsync -DPERFORMANCE_RUN=1 -lrt
Memory location : Please put data memory location here
(e.g. code in flash, data on heap etc)
seedcrc : 0xe9f5
[0]crclist : 0xe714
[0]crcmatrix : 0x1fd7
[0]crcstate : 0x8e3a
[0]crcfinal : 0xbd59
Correct operation validated. See README.md for run and reporting rules.
CoreMark 1.0 : 3614.675583 / GCC14.2.1 20250322 -O2 -march=rv64gc_zfh_xtheadba_xtheadbb_xtheadbs_xtheadcmo_xtheadcondmov_xtheadfmemidx_xtheadfmv_xtheadint_xtheadmac_xtheadmemidx_xtheadmempair_xtheadsync -DPERFORMANCE_RUN=1 -lrt / Heap
native
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
2K performance run parameters for coremark.
CoreMark Size : 666
Total ticks : 12419
Total time (secs): 12.419000
Iterations/Sec : 3220.871246
Iterations : 40000
Compiler version : GCC14.2.1 20250322
Compiler flags : -O2 -DPERFORMANCE_RUN=1 -lrt
Memory location : Please put data memory location here
(e.g. code in flash, data on heap etc)
seedcrc : 0xe9f5
[0]crclist : 0xe714
[0]crcmatrix : 0x1fd7
[0]crcstate : 0x8e3a
[0]crcfinal : 0x25b5
Correct operation validated. See README.md for run and reporting rules.
CoreMark 1.0 : 3220.871246 / GCC14.2.1 20250322 -O2 -DPERFORMANCE_RUN=1 -lrt / Heap

约有 12% 的性能提升。
